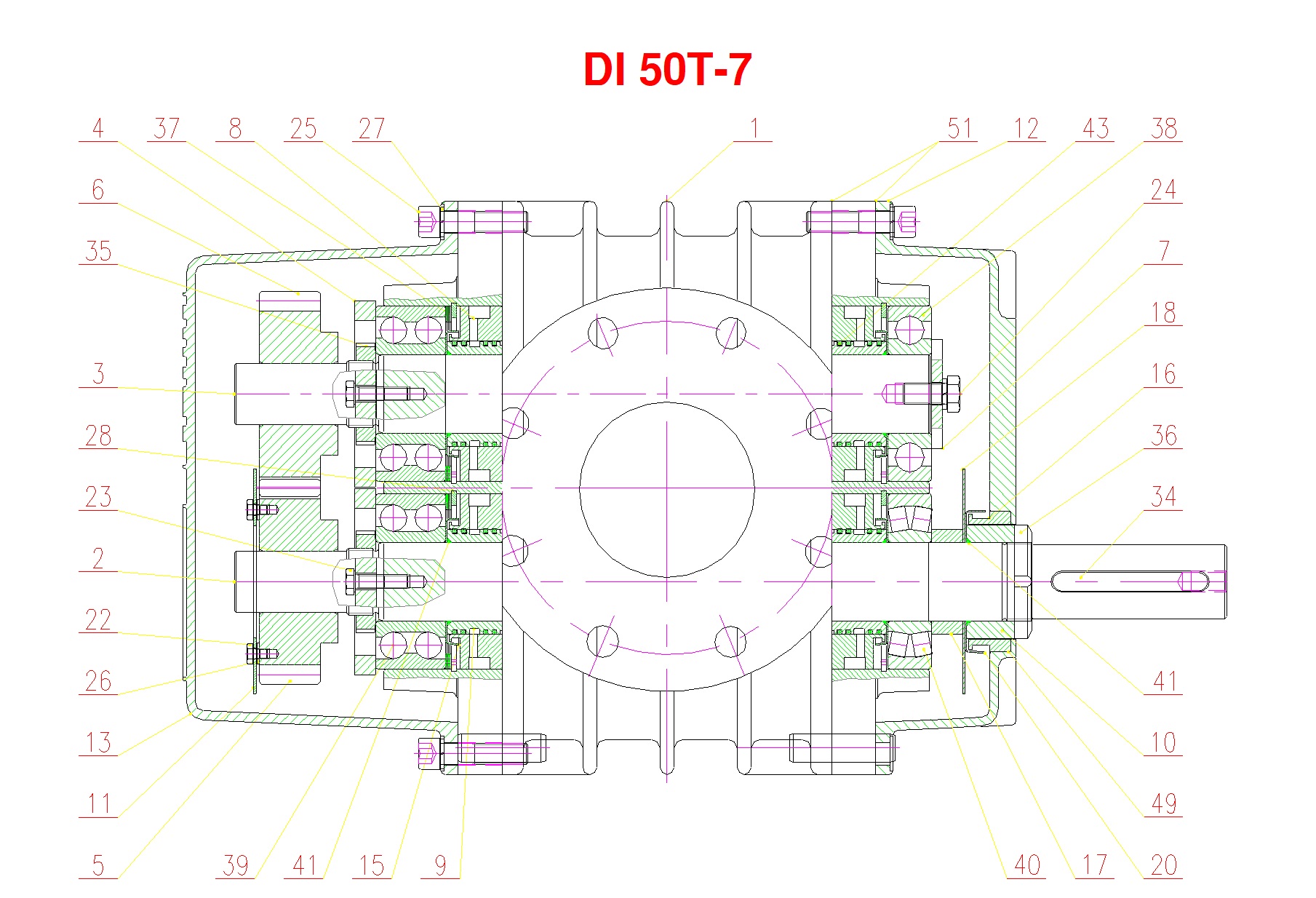

LUTOS產品DI50備件圖
| (DI 50T-7) | |||||||
| Pos. | Drawing-No. | Description CZ | Description EN | Material | qty. | group | part n. |
| 1 | 284109 | Sk?íň | Casing | 1 | B3 | VY00321 | |
| 2 | 371844a | Rotor 1 | Rotor 1 | GJS 500-7 | 1 | B2 | VY01602 |
| 3 | 371845a | Rotor 2 | Rotor 2 | GJS 500-7 | 1 | B2 | VY01603 |
| 4 | 486128a | Víko lo?iska | Bearing cover | 11 523.1 | 2 | B3 | VY00239 |
| 5 | 372069 | Kolo | Gear | 14 220.3 | 2 | B2 | VY02229 |
| 6 | |||||||
| 7 | 470.454 | Podlo?ka | Washer | 11 110.0 | 1 | VY00071 | |
| 8 | 484.814 | Ucpávka | Seal | 42 2420(L200) | 4 | B2 | VY00163 |
| 9 | 484.819b | Pouzdro | Sleeve | 11 110.0 | 4 | B2 | VY00166 |
| 10 | 485.651 | Pouzdro 1 | Sleeve 1 | 42 2420(L200) | 1 | VY00202 | |
| 11 | 484.816 | Mazací kotou? 2 | Lubricating disk 2 | 11 321.21 | 1 | B2 | VY00164 |
| 12 | 283.918 | Víko 1 | Cover 1 | 42 2420 | 1 | B3 | VY00319 |
| 13 | 283.917 | Víko 2 | Cover 2 | 42 2420 | 1 | B3 | VY00320 |
| 14 | |||||||
| 15 | 484.817 | Odst?ikovací kotou? | Oil splash disk | 11 321.21 | 4 | B2 | VY00165 |
| 16 | 485.652a | Sběra? | Slip ring | 11 523.0 | 1 | VY00203 | |
| 17 | 485.653 | Distan?ní krou?ek 2 | Spacer ring | L250 | 1 | VY00204 | |
| 18 | 484.821 | Mazací kotou? 1 | Lubricating disk 1 | 11 321.21 | 1 | B2 | VY00167 |
| 20 | 485.654 | Odst?ikovací kotou? 2 | Oil splash disk 1 | 11 321.21 | 1 | B2 | VY00205 |
| 21 | |||||||
| 22 | ISO 4017 | Šroub M6x8 | Screw | 2 | NS0785 | ||
| 23 | ISO 4017 | Šroub M8x30 | Screw | 4 | NS0647 | ||
| 24 | ISO 4017 | Šroub M12x25 | Screw | 1 | NS0304 | ||
| 25 | ?SN 021143.55 | Šroub M12x50 | Screw | 20 | NS0320 | ||
| 26 | ?SN 021702 | Podlo?ka 6,40 | Washer | 2 | NS0207 | ||
| 27 | ?SN 021740 | Podlo?ka 12 | Washer | 21 | NS0148 | ||
| 28 | ?SN 022931 | Pojistný krou?ek 100 | Lock ring | 4 | NM0103 | ||
| 29 | ?SN 02 9310.2 | Těsnicí krou?ek 10x14x1 | Packing ring | 2 | NM1022 | ||
| 30 | ?SN 02 9310.2 | Těsnicí krou?ek 12x16x1,5 | Packing ring | 4 | NM1638 | ||
| 31 | ?SN 021519.15 | Zátka M12x1,5 | Oil plug | 4 | NS0732 | ||
| 32 | ?SN 021519.15 | Zátka M10x1 | Plug | 1 | NS0731 | ||
| 33 | |||||||
| 34 | ?SN 022562 | Pero 12h9x8x90 | Key | 1 | B2 | NM0257 | |
| 35 | ?SN 02 1449 | Matice 38x1,5 | Nut | 2 | NS0100 | ||
| 36 | ?SN 023630 | Matice KM 9 | Lock nut | 1 | B2 | NS0129 | |
| 37 | Siemens Moh. | Pru?ná podlo?ka 99,5x80,5x0,7 | Spring shim | 6 | NM0301 | ||
| 38 | SKF | Lo?isko 6309 | Bearing | 1 | B1 | NM0185 | |
| 39 | SKF | Lo?isko 3309 A | Bearing | 2 | B1 | NM0161 | |
| 40 | SKF | Lo?isko 21309 E | Bearing | 1 | B1 | NM0134 | |
| 41 | OR2004500 | O krou?ek 45x2 | O-ring | MVQ | 5 | B1 | NM0952 |
| 42 | |||||||
| 43 | ?SN 02 7010 | Pístní krou?ek 60x2,4x2,5 | Piston ring | 16 | B2 | NM0089 | |
| 44 | ?SN 23 1480 | Olejoznak M24x1,5 | Oil level plug | 2 | B2 | NM0243 | |
| 45 | |||||||
| 46 | |||||||
| 47 | |||||||
| 48 | Loctite | Lepidlo518 | Adhesive | 1 | NM0120 | ||
| 49 | Loctite | Lepidlo L648 | Adhesive | ||||
| 50 | Loctite | Těsnění L577 | Packing | ||||
| 51 | Loctite | Těsnění FAG 2 | Packing | ||||
